Dorkpod Beta Assembly : Day 8

Dorkpod Electric Vehicle assembly day eight by Tinkersmiths Makerspace. On this day we install the Dorkpod on the drivetrain .

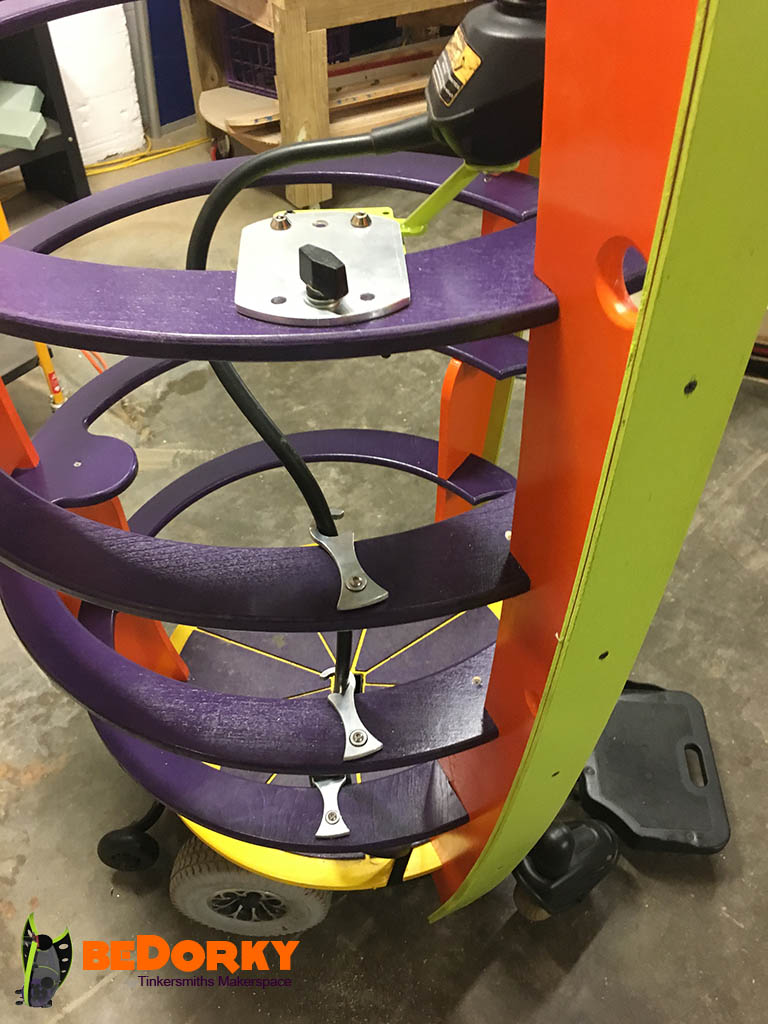

Dorkpod T-Fin Painted Lime Green Installed
Dorkpod T-Fin Painted Lime Green Installed. Glued Together As Screwed.

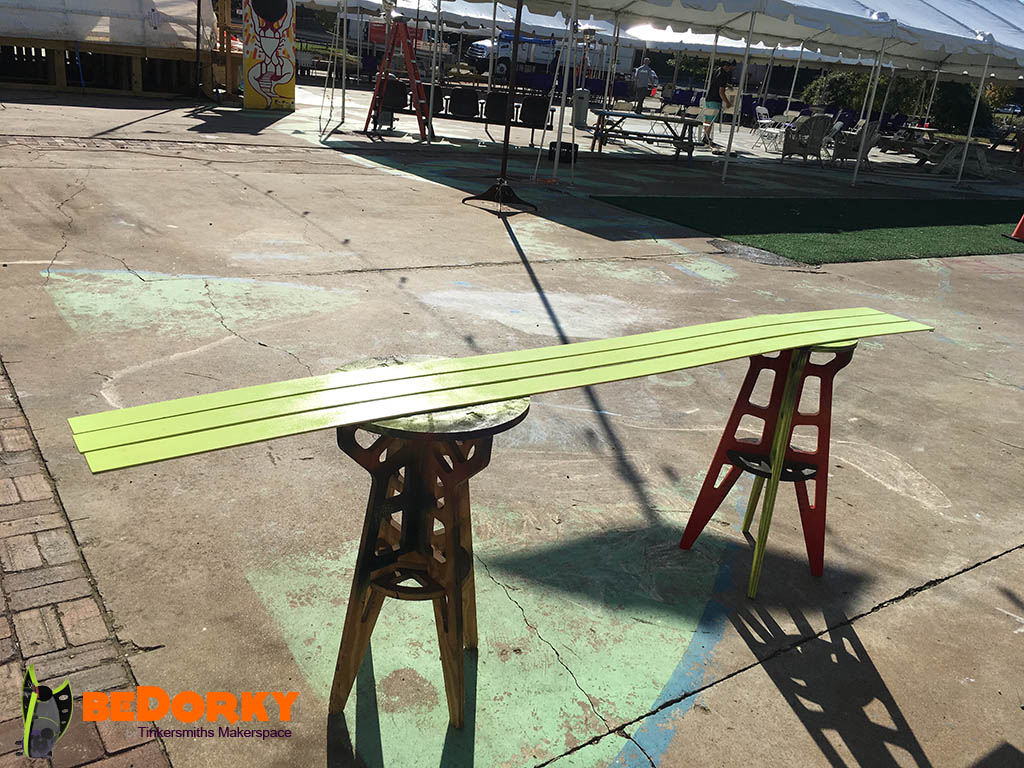

Dorkpod T-Fin Strips Being Painted
Dorkpod T-Fin Strips (Three Side Supports) Being Painted.

Dorkpod Beta Assembly : Day 7

Dorkpod Electric Vehicle assembly day seven by Tinkersmiths Makerspace. On this day we install the Dorkpod on the drivetrain .

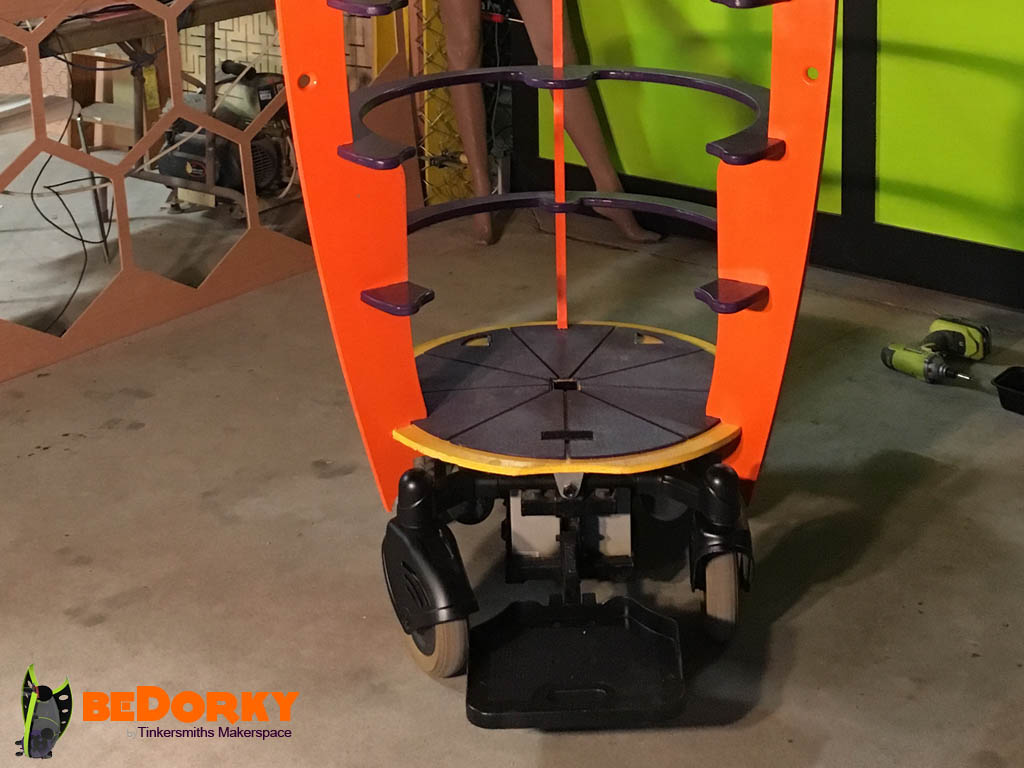

Dorkbot Lowered on Drivetrain and Bolted onto Drivetrain Chassis
Dorkbot Lowered on Drivetrain and Bolted onto Drivetrain Chassis.

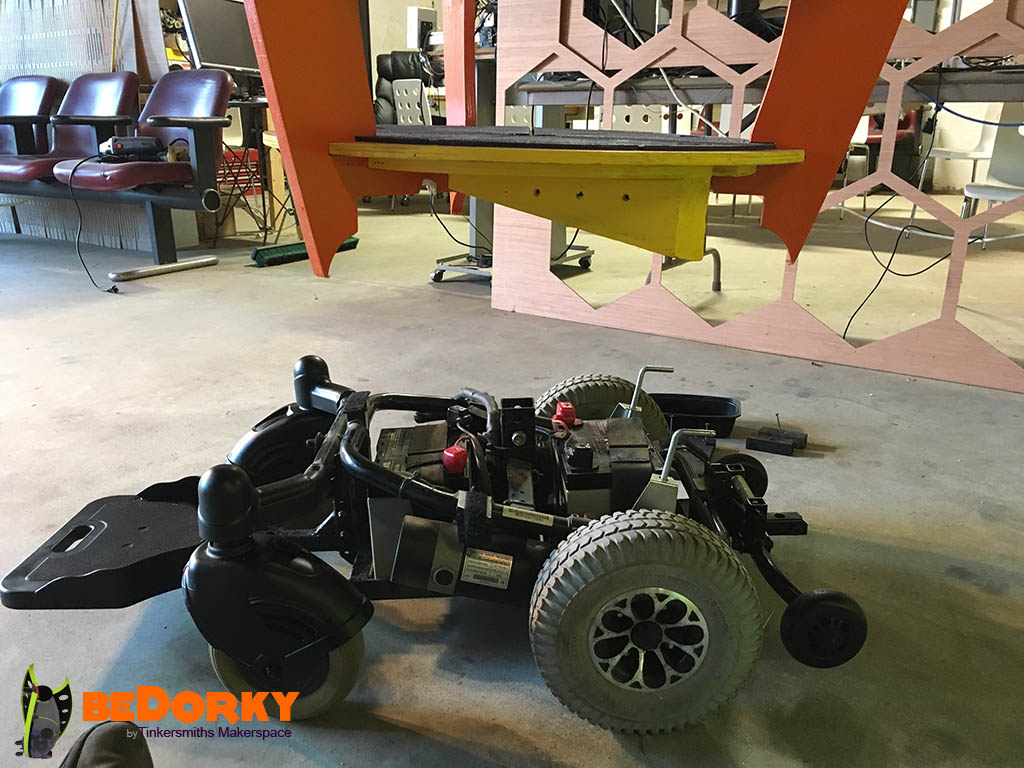

Dorkbot Lowered on Drivetrain with Lift.
Dorkbot Lowered on Drivetrain with Lift.

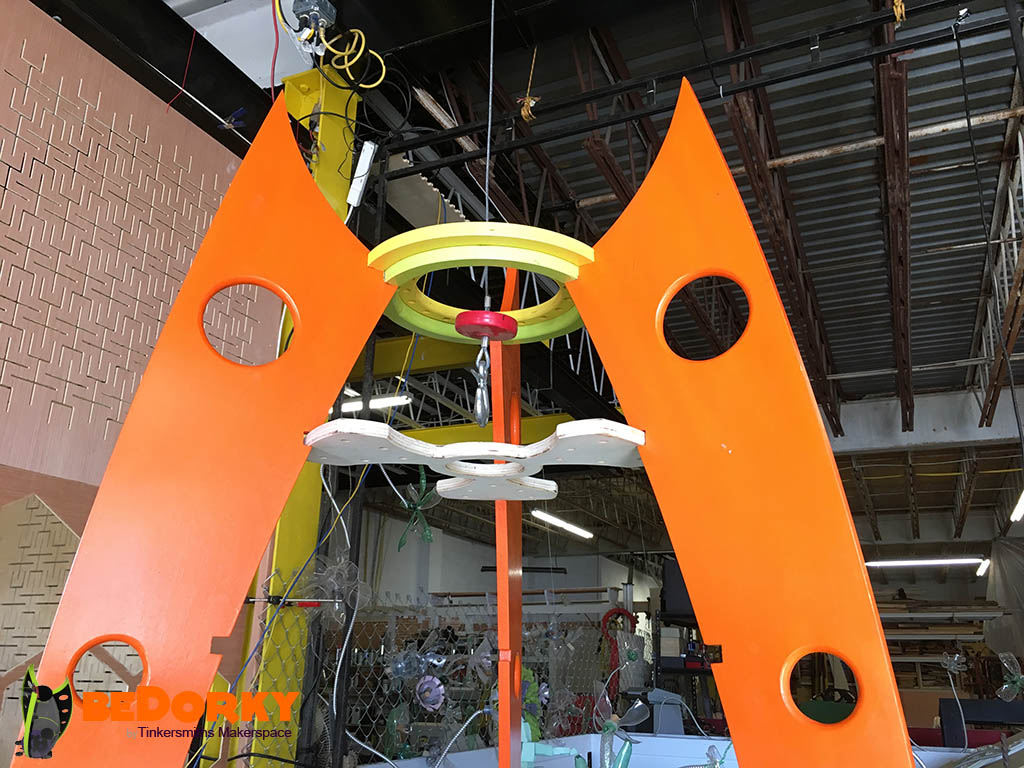

CNCed Dorkpod Lift Jig Installed on Hoist
CNC'ed Dorkpod Lift Jig Being Installed on Hoist.

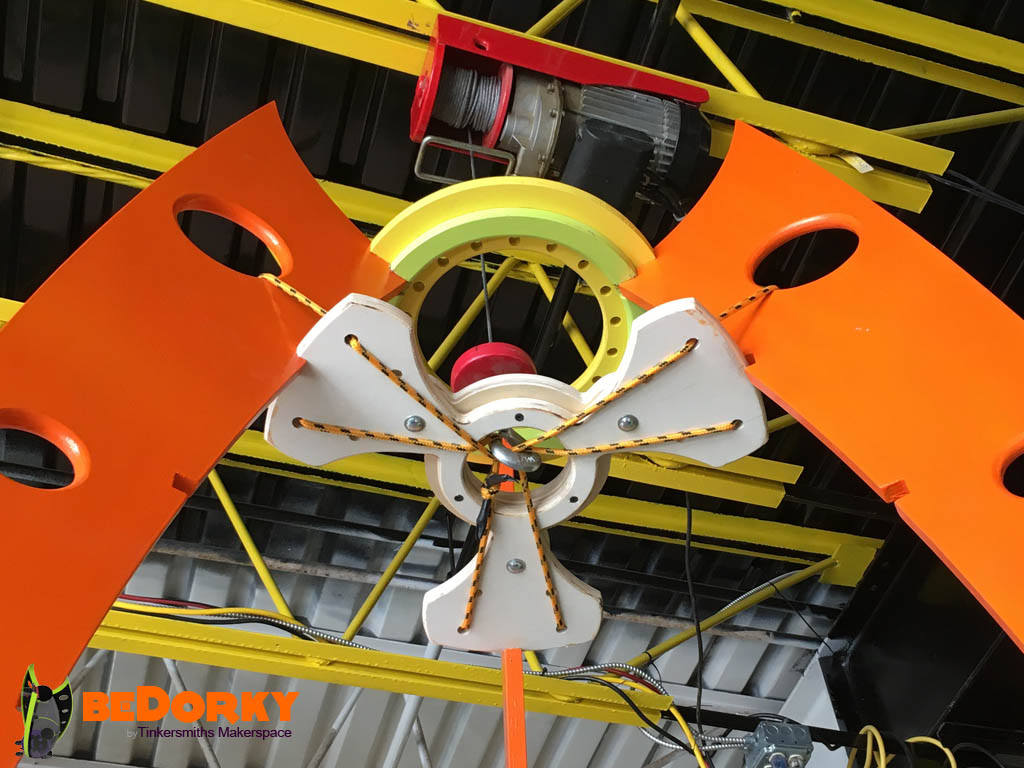

CNCed Dorkpod Lift Jig Installed on Hoist
CNC'ed Dorkpod Lift Jig Installed on Hoist.

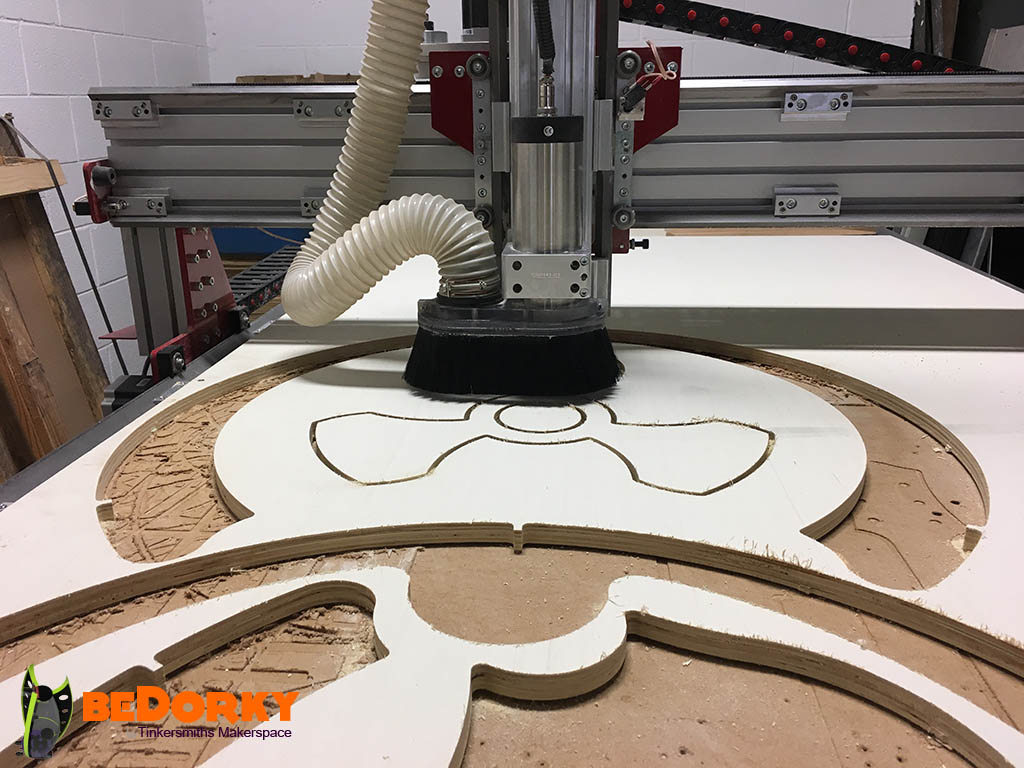

CNC Milling the Dorkpod Lift Jig.

Assembling the Dorkpod with a lift. Spring for a Little Fun.
Assembling the Dorkpod Skeleton in Charlottesville Virginia
Assembling the Dorkpod with a lift. This is a jig to lift the device.

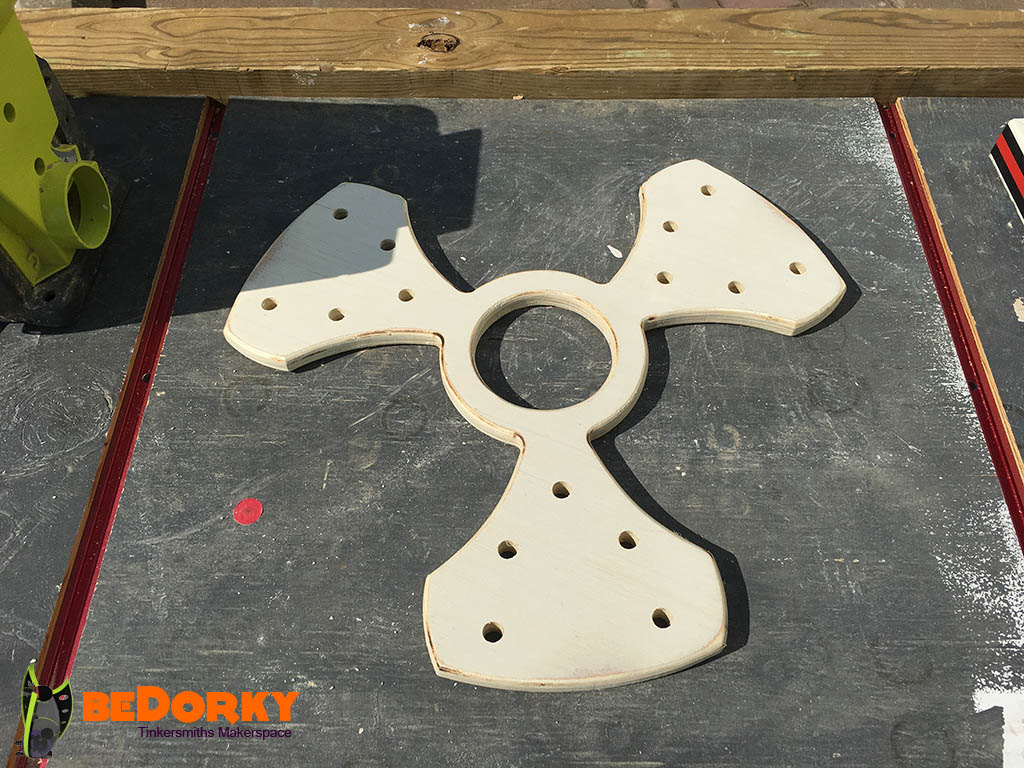

Dorkpod Lift Jig Edged with Router
CNC'ed Dorkpod Lift Jig Edged with Router.

Dorkpod Beta Assembly : Day 6

Dorkpod Electric Vehicle assembly day six by Tinkersmiths Makerspace. On this day we .

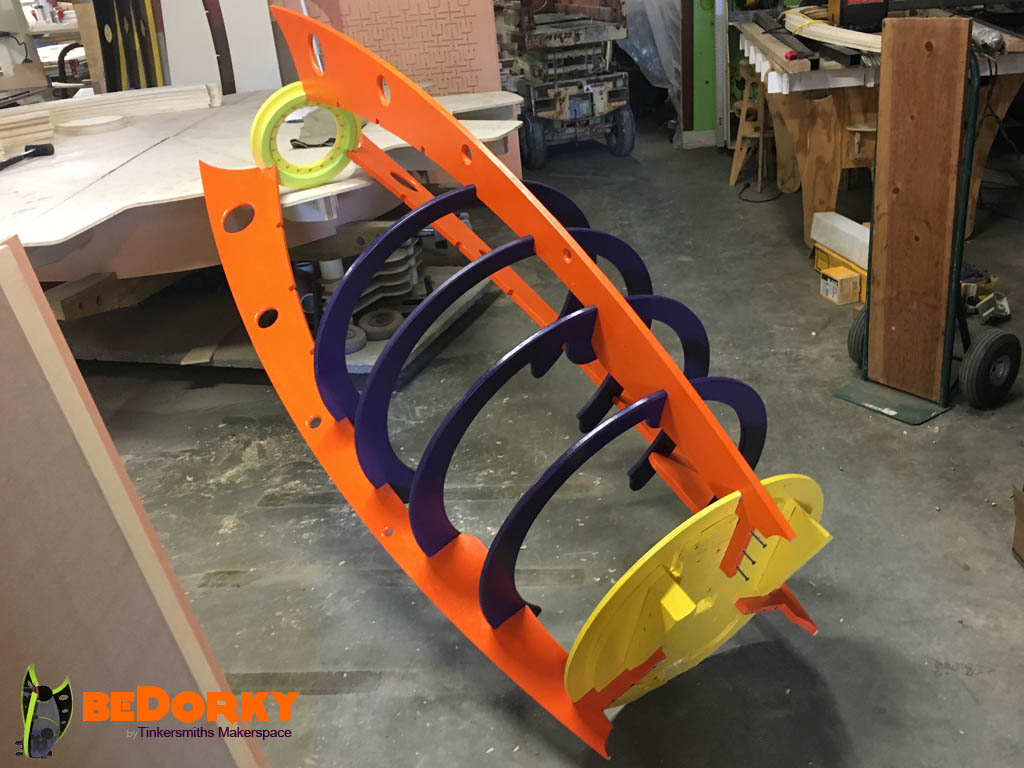

Assembling the Dorkpod Skeleton in Charlottesville Virginia
Assembling the Dorkpod. Still needs the T-Fin outer strips.

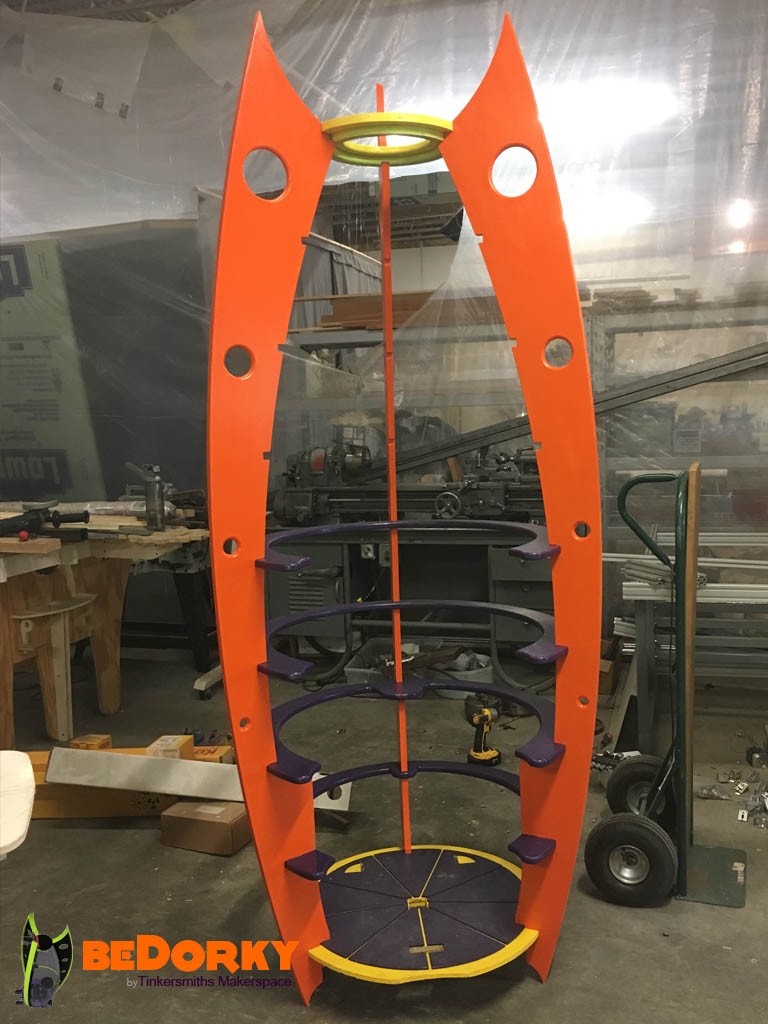

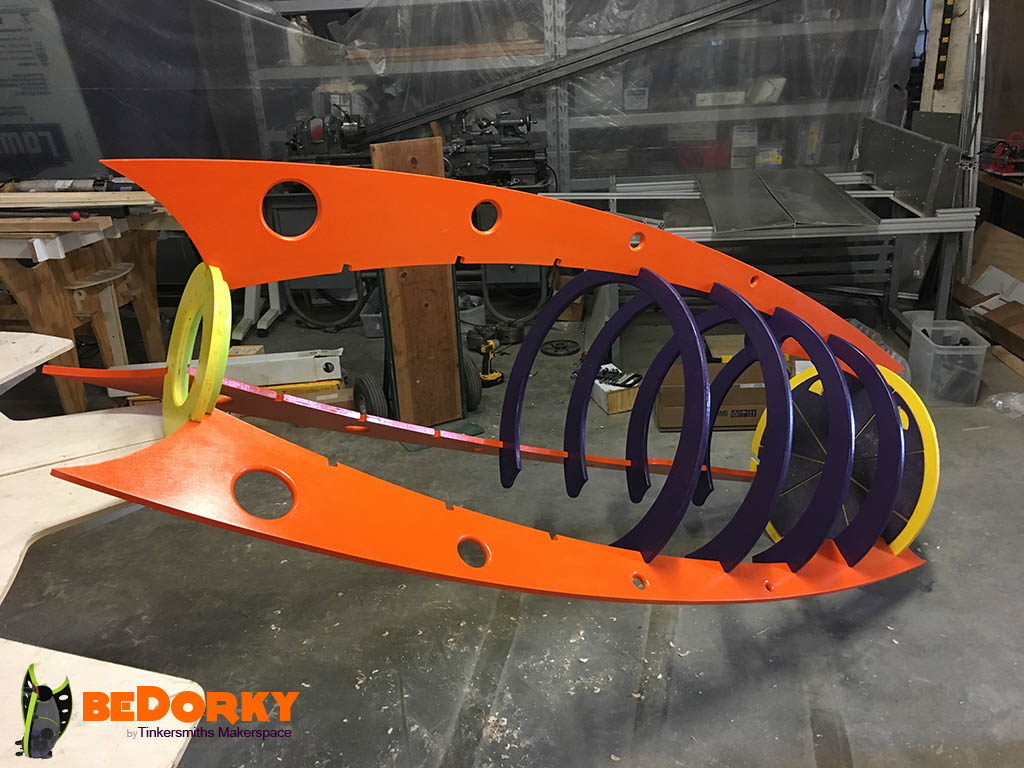

Assembly of the Dorkpod Skeleton
Assembly of the Dorkpod Skeleton ready to go onto the drivetrain.
Assembly of the Dorkpod Skeleton
Assembly of the Dorkpod Skeleton ready to go onto the drivetrain.

Dorkpod Beta Assembly : Day 5

Dorkpod Electric Vehicle assembly day five by Tinkersmiths Makerspace. On this day we .

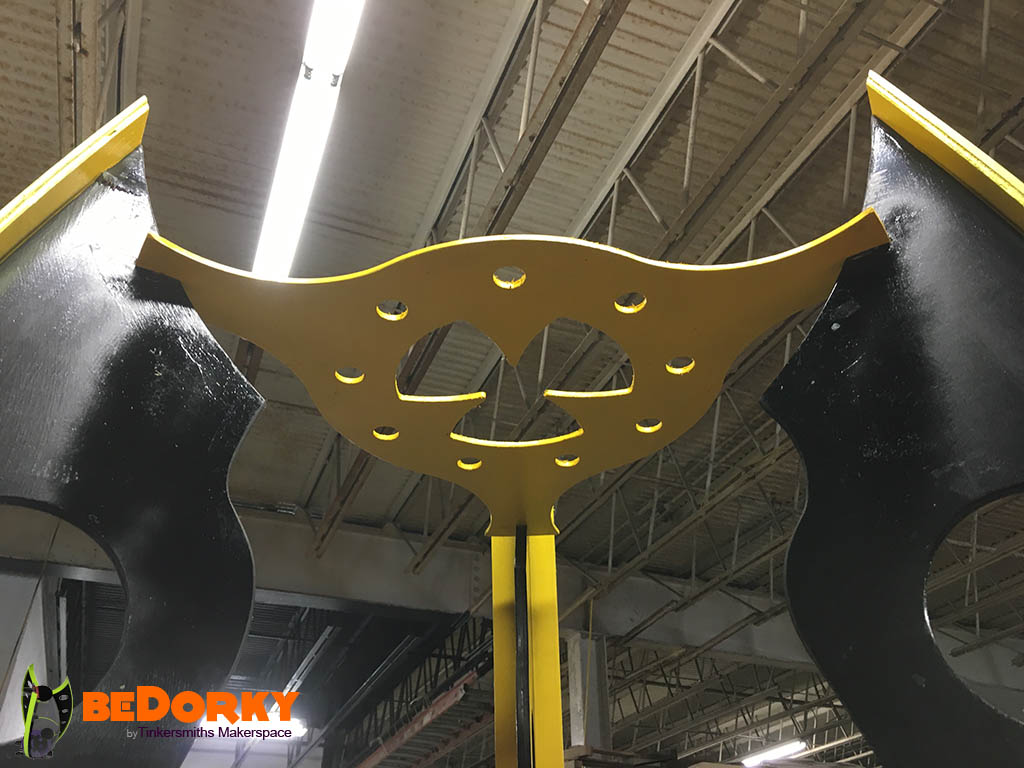

Assembling the Dorkpod Ceiling Rings in Charlottesville Virginia
Gothpod Version 1 Ceiling Detail. Note the Purple Accessory Thingies.

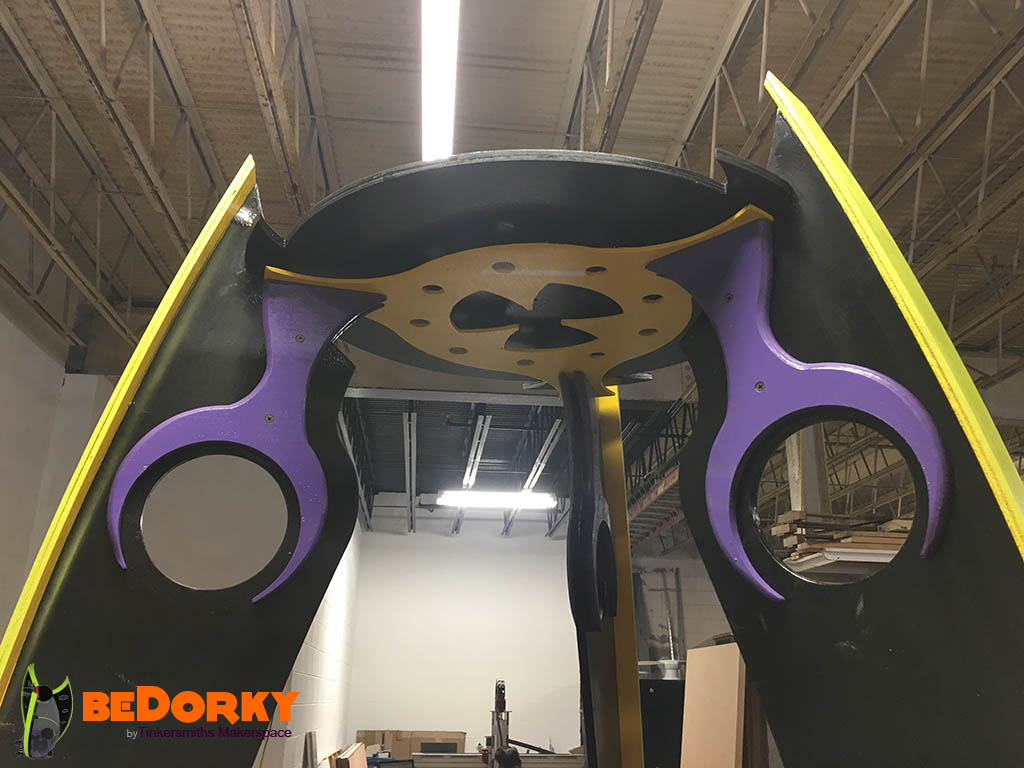

Assembling the Dorkpod Ceiling Rings in Charlottesville Virginia
Gothpod Version 1 Ceiling Detail. Yellow Atomic Uterus Thingy.
Assembling the Dorkpod Ceiling Rings in Charlottesville Virginia
Assembling the Dorkpod Ceiling Rings. Rings and Side Fins have Alignment Cutouts.

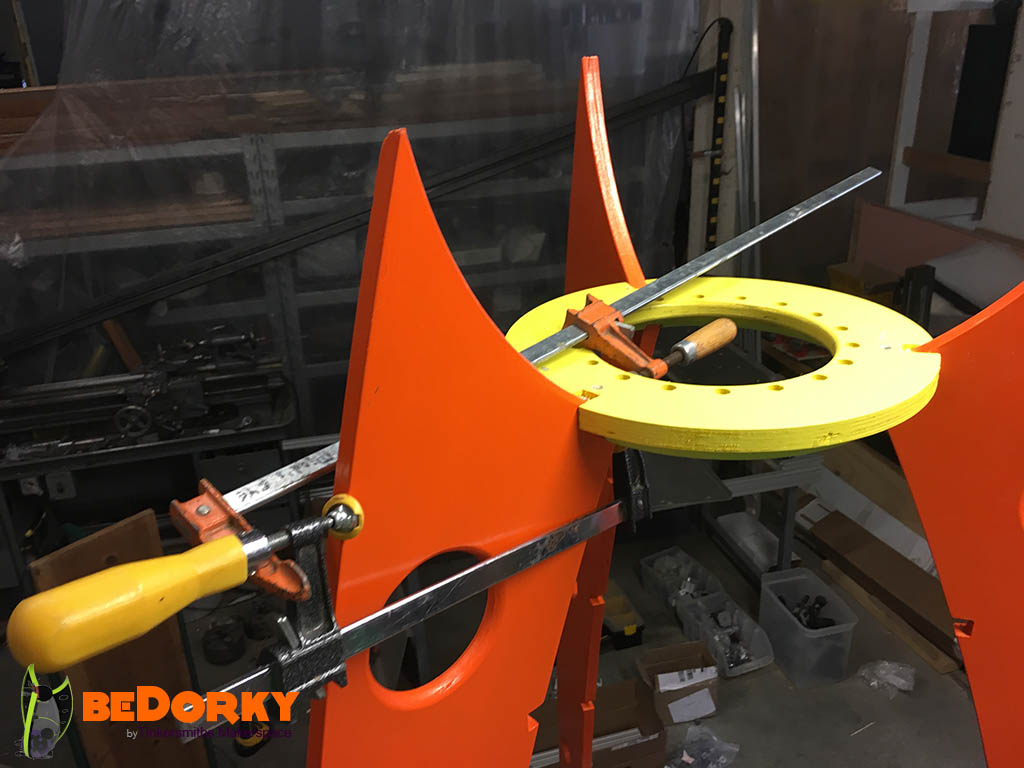

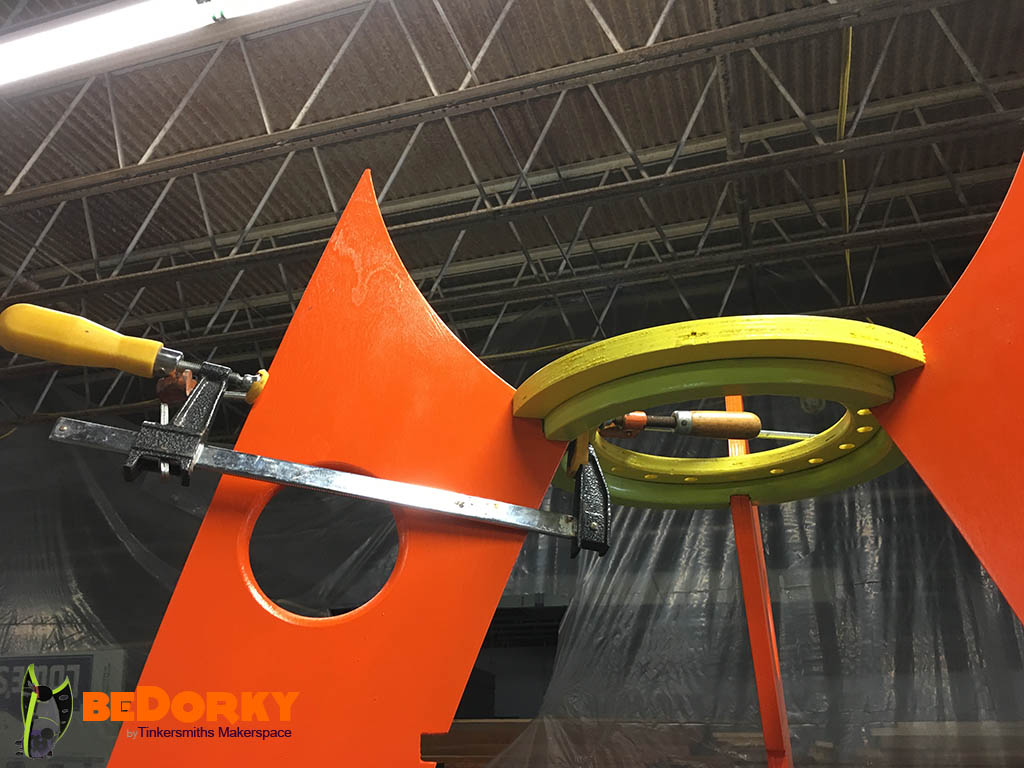

Assembling the Dorkpod Ceiling Rings in Charlottesville Virginia
Assembling the Dorkpod Ceiling Rings. Clamping Parts to be Screwed in Place.

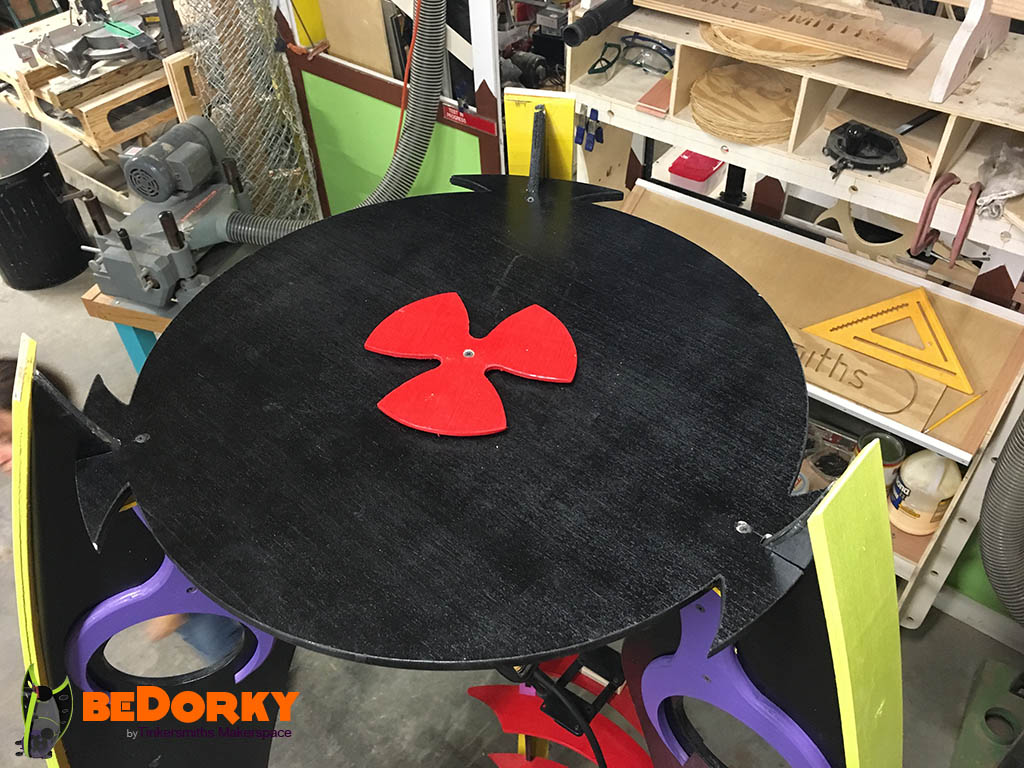

Dorkpod Ceiling Beanie Propeller
Dorkpod Ceiling Beanie Propeller.
